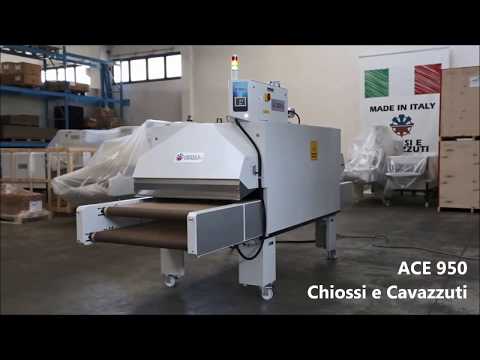

Chiossi e Cavazzuti Ace 950 - single belt
Specifically designed to cure digital inks on fabrics.
The advantage of these dryers is the high volume of forced air circulation: this accelerates the evaporation of water-based digital inks with unmatched results on the finished garment in medium-long drying process. Produced in Italy.
In the heat chamber the temperature is uniform and constant on both sides and the center, adjusted by a precise thermostat and by a long-lasting static relay control system; in this manner the temperature never exceeds the set value, preventing damage even to the most delicate fabrics. The air exchange is adjusted to discharge steam and promote high-volume air circulation. This enhanced airflow convection system is designed on purpose and employs high yield, low-noise reverse blades. Outflow nozzles direct the air onto the product perpendicularly and at high speed. Filters on each blower fan achieve an efficient and low maintenance working process.
The entire machine is protected with circuit breakers and thermostats to prevent electrical and heating failures: the digital control panel has also a detailed alarm history chart to improve the safety and maintenance for extended working periods. — ACE 950 PRODUCTION DATA: Water-based Digital Ink – A4 print size on T-shirt – Data may change according to the fabric material, drying area size and ink curing requirements. Curing Area: 2000×950
- 3 minutes curing time: 180 pieces/h
- 4 minutes curing time: 140 pieces/h
- 5 minutes curing time: 110 pieces/h
- 6 minutes curing time: 90 pieces/h
|Technical Data||Ace 950||Dual 1200|
|Electrical requirements||400V 3phase (108V/230V 3 phase optional)||400V 3phase (108V/230V 3 phase optional)|
|Max temperature||356 F||356F|
|Exhaust specification||180 m³/h - Ø 150 mm||180 m³/h - Ø 150 mm|
|Production (light-dark)||160-100 pieces per hour||240-160 pieces per hour|
|Dimension (LxWxH)||149.6"x49.2"x88.6"||161.4"x 59.02" x 88.6"|
|Shipping Weight||1433 lbs||1719 lbs.|
