Tesoma dryers are designed to help shops maximize their production capabilities. German-built and designed for high-production in both the screen printing and direct-to-garment print facilities.

Specifically Designed for High-Production

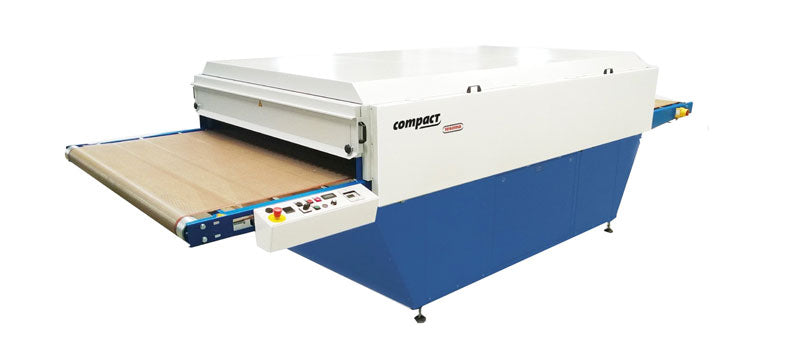

Tesoma Compact

Tesoma Compact Dryers - Gas or Electric

The Compact dryer is a high-powered conveyor belt dryer in a smaller footprint. A perfect solution for screen printers and DTG printers looking for good production. Built with the same quality and design as its bigger brother the Drylight the Compact comes in four separate models: three, four, six, and eight. For those without gas hookup, no worries, the Compact is also available in electric.

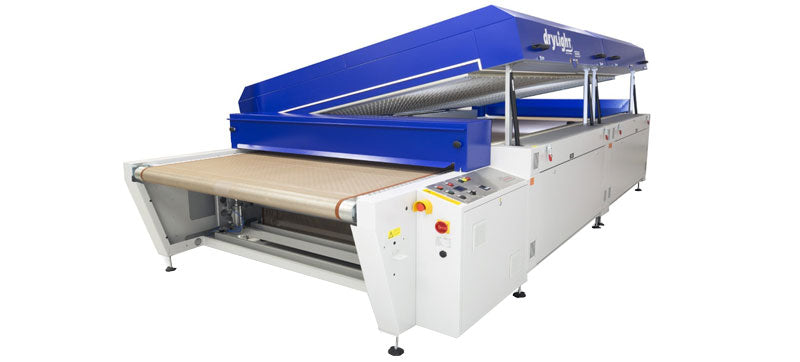

TEsoma Drylight

TESOMA DRYLIGHT IN STOCK

TESOMA Drylight is the best choice for curing water-based, plastisol, and digitally printed inks. The high volume of air flow with consistent heat through-out the chamber provides the best un-interrupted heat. These dryers are equipped with the Weishaupt burner system, the most efficient and reliable burner in the market!

TESOMA COMPACT

Use for Medium to Large Production shops. Available in Gas or Electric in various heating chambers listed below.
Compact Three: Heating Zone 2900 mm / 114" (9.5')
Compact Four: Heating Zone 3900 mm / 153" (12.75')
Compact Six: Heating Zone 5900 mm /  232" (19.3')
Compact Eight: 7900 mm / 311" (25.9')

TESOMA DRYLIGHT

Drylight conveyor belt dryers are  well insulated and cool to touch on the outside. Their are designed to keep the heat on the inside of the chamber. This remarkable heat retention with minimal heat loss transfers directly into lower running costs, increased efficiency and reduced impact on the environment and our planet.

The Industry's Standard of Excellence
in Efficient & Reliable Textile Dryers

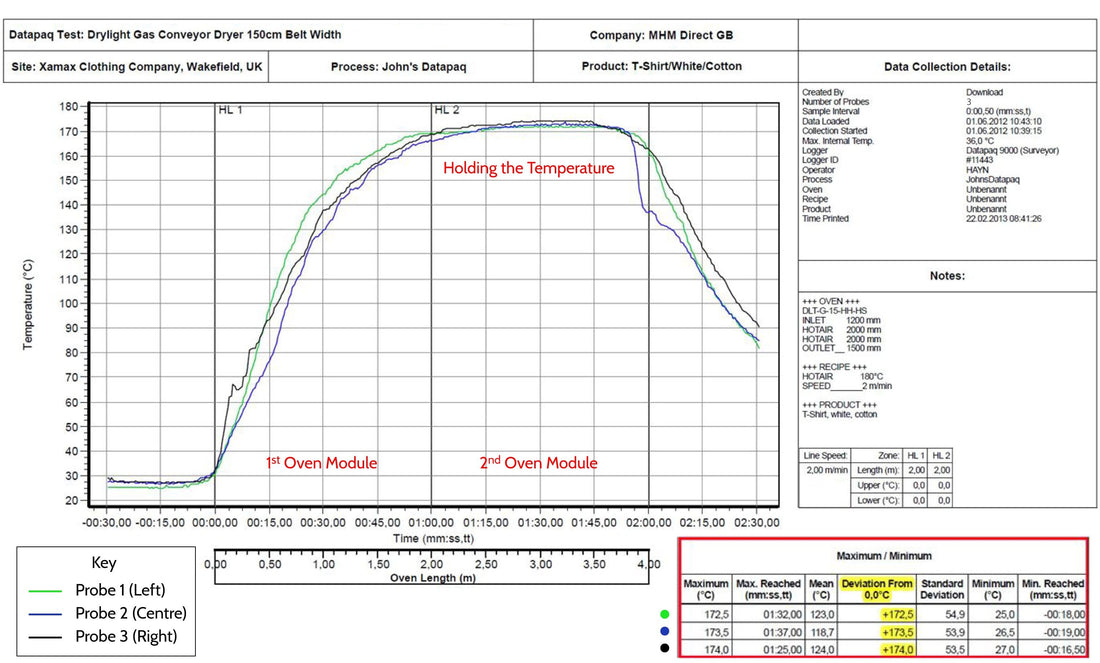

Proof of the consistent heat throughout the chamber:

Probes 1, 2 & 3 represent temperature measurements taken from the left, centre and right side of the belt. As you can see on the graph, all three readings remain very close to each other, indicating that the temperature across the belt is extremely consistent. This means your garments will cure at the temperature intended with brighter colors and reliable wash-fastness.

As represented in the graph below, in the second oven section (HL2) once the set temperature has been reached, that temperature is held for approximately one minute on all temperature probes. This is a perfect curve/reading for complex printing requirements such as water-based and discharge inks.
