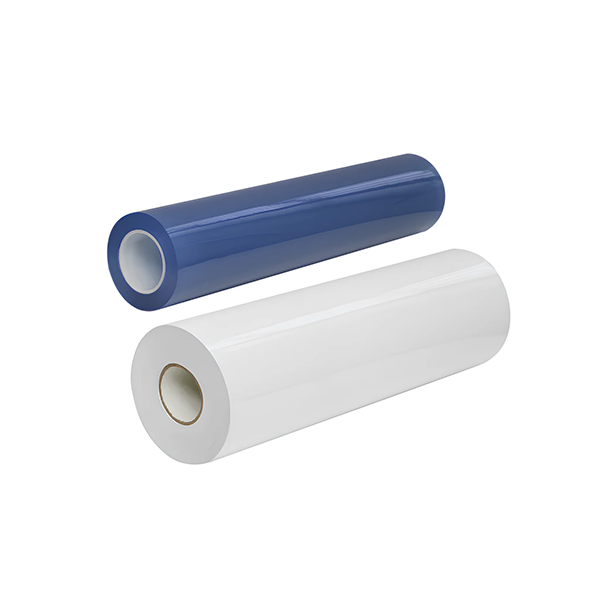

Mimaki UV DTF Film AB (UJV300DTF-75)
Professional two-part UV Direct-to-Film (UV DTF) transfer film system designed for the Mimaki UJV300DTF-75 printer, delivering vibrant, high-resolution graphics, excellent adhesion, and durable decorative transfers for curved, uneven, and hard-to-print surfaces.
Characteristics
The Mimaki UV DTF Film AB (UJV300DTF-75) is a specialized two-part transfer film system engineered for use with the Mimaki UJV300DTF-75 UV Direct-to-Film printer. Designed to produce high-quality, full-color decorative transfers, this film system allows businesses to customize a wide variety of products without printing directly onto the object's surface.
The system consists of two essential components: Film A (Adhesive Printing Film) and Film B (Transfer/Application Film). Film A provides the adhesive surface on which UV-curable inks are printed, while Film B serves as the application layer used to transfer the finished design onto the desired substrate. Together, these films create a streamlined printing and application process that delivers professional results.
Unlike traditional UV printing methods that require direct access to the substrate, Mimaki UV DTF Film AB allows printed graphics to be transferred onto curved, irregular, and challenging surfaces. This versatility makes it ideal for customizing promotional products, drinkware, packaging, decorative accessories, and other hard-surface items.
Engineered to work with Mimaki's advanced UV-curable ink technology, the film system supports detailed graphics, vibrant colors, white ink, and clear finishes. The result is a professional decorative transfer with excellent visual quality and dependable adhesion when applied to compatible surfaces.
The UV DTF transfer process also eliminates the need for traditional cutting and weeding, helping reduce production time, simplify workflows, and improve efficiency for short-run and high-volume customization applications.
-
Two-Part A/B Film System
Film A provides the adhesive printing surface for UV-curable graphics, while Film B functions as the transfer and application layer. Both films work together for efficient UV DTF production and accurate graphic positioning. -
High-Quality UV DTF Printing
Produces vibrant, full-color decorative graphics with fine details, small lettering, and intricate designs. Supports compatible White and Clear UV ink printing for professional-quality transfers. -
Excellent Application Versatility
Designed for transferring graphics onto compatible hard surfaces, including curved, uneven, and irregularly shaped objects that are difficult to decorate using conventional flatbed UV printing. -
Efficient Production Workflow
Eliminates traditional contour cutting and weeding. Streamlines printing and transfer application while reducing manual handling and production steps. -
Professional Decorative Finish
Supports sharp graphics, consistent color reproduction, and durable decorative transfers. Allows intricate graphics to be applied without traditional transfer borders for clean, professional-looking results. -
Designed for Mimaki Equipment
Specifically developed for the Mimaki UJV300DTF-75 UV DTF printer. Supports the printer's specialized media-feeding system and integrated A/B film handling and lamination workflow.
Note: The printer dimensions listed above represent the UJV300DTF-75's media and printing capabilities, not the confirmed dimensions of the individual A/B film rolls.
-
1. Prepare the Printing System
Verify that the Mimaki UJV300DTF-75 is properly configured for UV DTF printing. Use compatible Mimaki UV-curable inks, confirm Film A and Film B are loaded correctly, and follow Mimaki's recommended media-handling procedures. -
2. Print the Design
Prepare artwork using compatible RIP software and configure the appropriate color, White, and Clear ink layers. Print onto Film A using recommended UV DTF settings and confirm proper ink curing. -
3. Apply Film B
Use the printer's designated lamination workflow to combine Film B with printed Film A. Maintain proper alignment and consistent contact while avoiding wrinkles, trapped air, or contamination. -
4. Prepare the Application Surface
Clean the target surface to remove dust, oils, fingerprints, and other contaminants. Ensure the surface is completely dry and test adhesion on unfamiliar substrates before production. -
5. Transfer the Graphic
Remove the appropriate release liner according to Mimaki's instructions. Position the graphic carefully, apply even pressure across the design, and slowly remove the application film while ensuring the graphic remains attached to the substrate. -
6. Handling and Storage
Store unused film in its original packaging. Protect from excessive heat, moisture, dust, and direct sunlight. Avoid touching adhesive or printable surfaces and follow Mimaki's storage and handling recommendations.
-
Promotional Products
Custom logos, branding, and decorative graphics on promotional merchandise. -
Drinkware
Personalized tumblers, cups, bottles, and other compatible hard-surface drinkware. -
Product Packaging
Decorative labels, branding elements, and specialty packaging applications. -
Custom Merchandise
Personalized gifts, accessories, and retail products. -
Curved and Irregular Surfaces
Decorating objects that are difficult to print using conventional flatbed UV printing. -
Small Business Customization
Short-run orders, personalized products, and on-demand merchandise. -
Commercial UV DTF Production
Professional transfer printing for businesses producing customized hard-surface products.
- Printer Compatibility: Mimaki UV DTF Film AB is intended for use with the Mimaki UJV300DTF-75 UV DTF printer. Confirm the correct film configuration and media specifications before ordering.
- Surface Compatibility: Adhesion and durability may vary depending on substrate material, surface texture, coatings, cleaning procedures, and environmental conditions. Always test transfers before full production.
- Application Requirements: UV DTF transfers are primarily intended for compatible hard-surface decoration. They are not a substitute for traditional textile DTF transfers.
- Durability: Scratch resistance, water resistance, and overall transfer durability depend on the printed ink system, substrate, and application conditions. Do not assume dishwasher, microwave, or outdoor suitability without testing and manufacturer confirmation.
- Film Specifications: Exact roll dimensions, lengths, and packaging quantities should be verified against the specific Mimaki Film A and Film B product numbers before publication.
